Rotary Accumulator



Standard Technical Specification

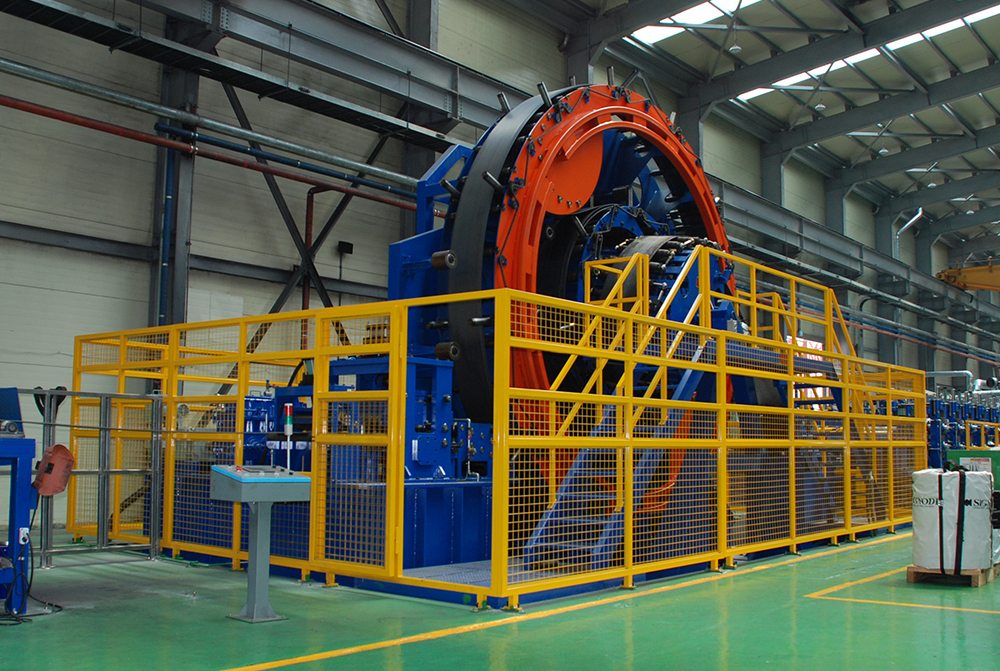

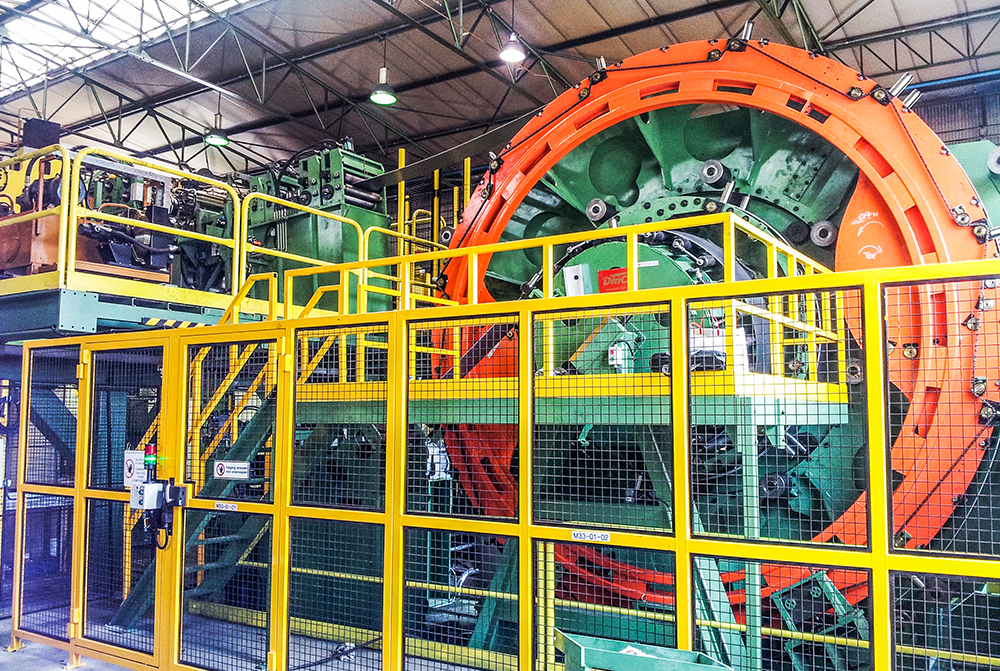

Rotary Accumulator (Vertical Type)

Specification
Models Tube Outer Diameter (mm) Wall Thickness (mm) Mill Line Speed (m/min)
DMC-VA10A 10.0 ~ 25.4 0.6 ~ 2.3 Max. 150
DMC-VA11A 10.0 ~ 31.8 0.6 ~ 2.6 Max. 150
DMC-VA11B 12.7 ~ 38.0 0.8 ~ 2.6 Max. 150
DMC-VA12A 21.7 ~ 60.5 0.8 ~ 2.6 Max. 150
DMC-VA12B 21.7 ~ 60.5 1.0 ~ 3.2 Max. 150
DMC-VA12C 21.7 ~ 60.5 1.2 ~ 4.5 Max. 130
DMC-VA21A 25.4 ~ 76.3 1.4 ~ 6.0 Max. 120
DMC-VA22A 25.4 ~ 76.3 1.0 ~ 4.0 Max. 120
DMC-VA22B 31.8 ~ 76.3 1.4 ~ 6.0 Max. 120
DMC-VA22C 38.1 ~ 76.3 1.4 ~ 8.0 Max. 100
DMC-VA23A 31.8 ~ 89.1 1.4 ~ 4.5 Max. 120
DMC-VA23B 31.8 ~ 89.1 1.4 ~ 6.0 Max. 100
DMC-VA23C 31.8 ~ 89.1 1.4 ~ 9.0 Max. 100
DMC-VA24A 38.1 ~ 114.3 1.4 ~ 6.0 Max. 100
DMC-VA24B 38.1 ~ 114.3 1.4 ~ 9.0 Max. 90
DMC-VA24C 38.1 ~ 114.3 2.3 ~ 11.0 Max. 80
DMC-VA31A 38.1 ~ 127.0 1.2 ~ 4.5 Max. 100
DMC-VA31B 38.1 ~ 127.0 1.2 ~ 6.0 Max. 70
DMC-VA31C 42.7 ~ 139.8 1.4 ~ 6.0 Max. 70
DMC-VA31D 42.7 ~ 139.8 1.4 ~ 9.0 Max. 60
DMC-VA32A 50.8 ~ 168.3 1.4 ~ 6.0 Max. 70
DMC-VA32B 50.8 ~ 168.3 2.0 ~ 8.0 Max. 60
DMC-VA32C 50.8 ~ 168.3 2.3 ~ 10.0 Max. 60
DMC-VA33A 60.5 ~ 190.7 1.4 ~ 6.0 Max. 60
DMC-VA33B 60.5 ~ 190.7 2.0 ~ 8.0 Max. 60
DMC-VA33C 60.5 ~ 190.7 2.3 ~ 10.0 Max. 60
