ERW Tube Mill Line (Max. Ø60.5 ~ Ø114.3mm)

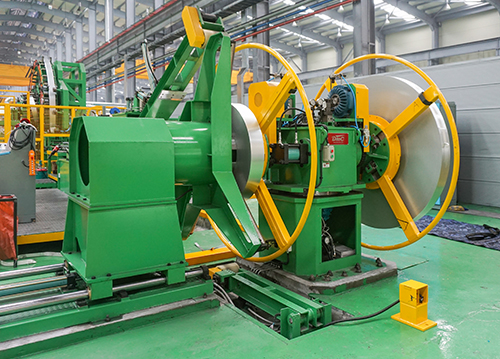

  • Uncoiler (Double Drums & Swivel)

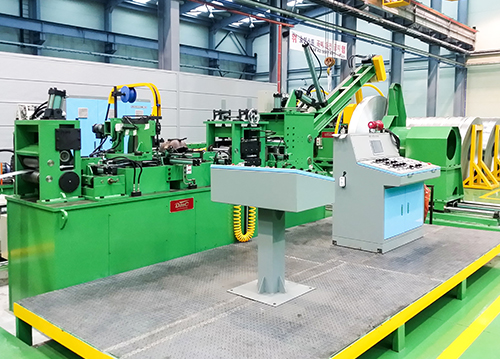

  • Coil Opener | Auto Shear & End Welder Machine

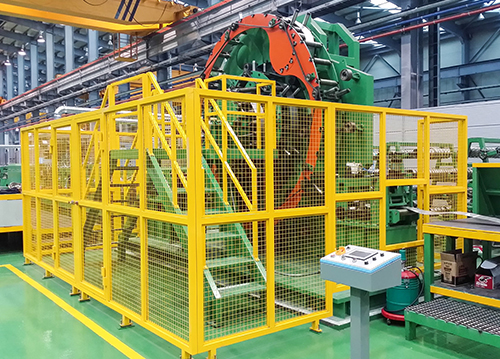

  • Rotary Accumulator (Vertical Type)

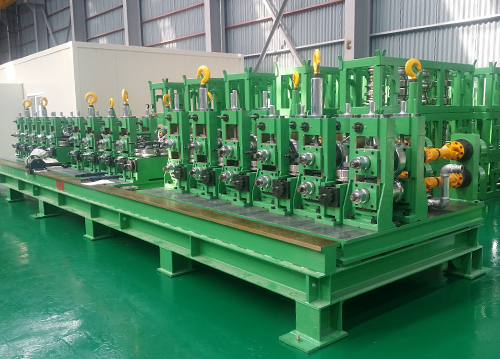

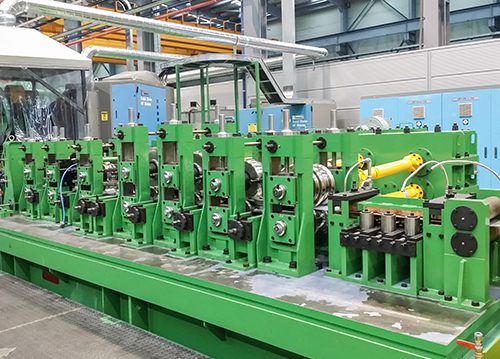

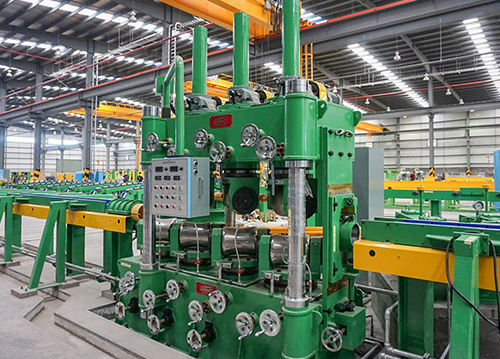

  • Forming Roll Stands

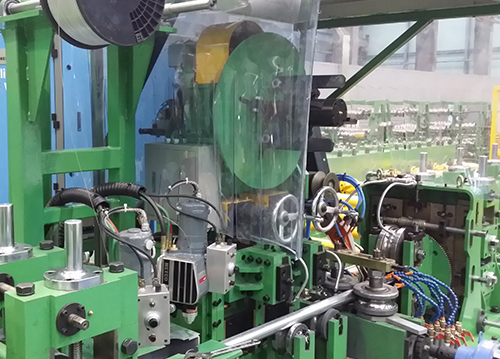

  • High Frequency Welding

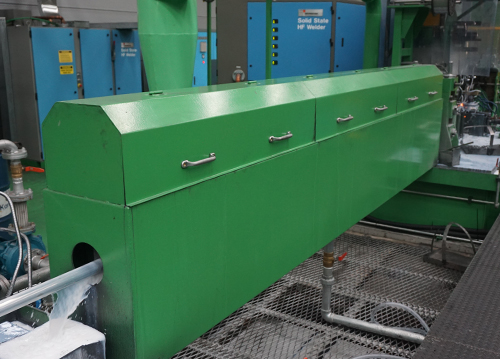

  • Cooling Bath

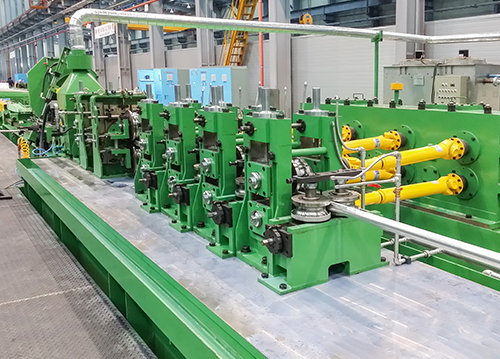

  • Sizing Roll Stands
  • Quick Change System (Bed Change Type)

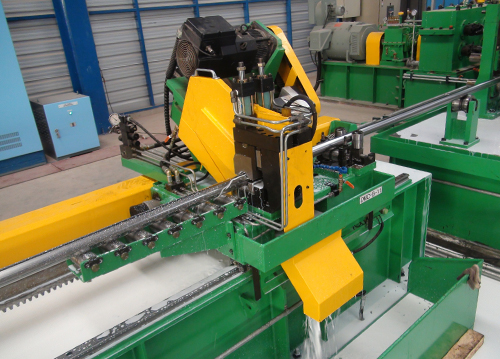

  • Cold Saw Cut-off Machine
  • End Facing & Chamfering Machine
  • Straightening Machine

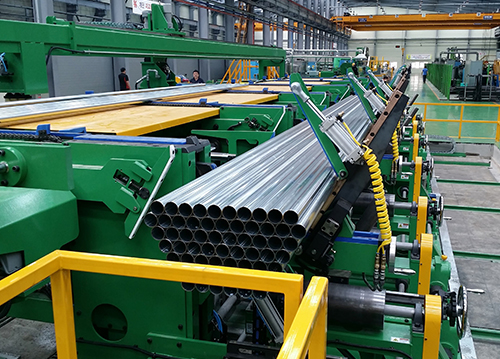

  • Auto Packing System (Fork Type)

Standard Technical Specification

ERW Tube Mill Line (Max. Ø60.5 ~ Ø114.3mm)

Specification
Models Tube Outer Diameter (mm) Wall Thickness (mm)
DMC-TM21A 25.4 ~ 60.5 1.4 ~ 6.0
DMC-TM22A 25.4 ~ 76.3 1.0 ~ 4.0
DMC-TM22B 31.8 ~ 76.3 1.4 ~ 6.0
DMC-TM22C 38.1 ~ 76.3 1.4 ~ 8.0
DMC-TM23A 31.8 ~ 89.1 1.4 ~ 4.5
DMC-TM23B 31.8 ~ 89.1 1.4 ~ 6.0
DMC-TM23C 31.8 ~ 89.1 1.4 ~ 9.0
DMC-TM24A 38.1 ~ 114.3 1.4 ~ 4.5
DMC-TM24B 38.1 ~ 114.3 1.4 ~ 6.0
DMC-TM24C 38.1 ~ 114.3 1.4 ~ 9.0
DMC-TM24D 38.1 ~ 114.3 2.34 ~ 11.0
