ERW Tube Mill Line (Max. Ø25.4 ~ Ø60.5mm)

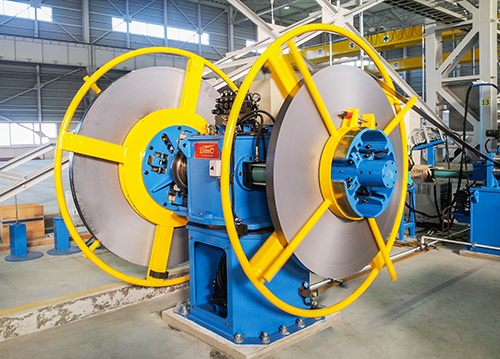

  • Uncoiler (Double Drums & Swivel)

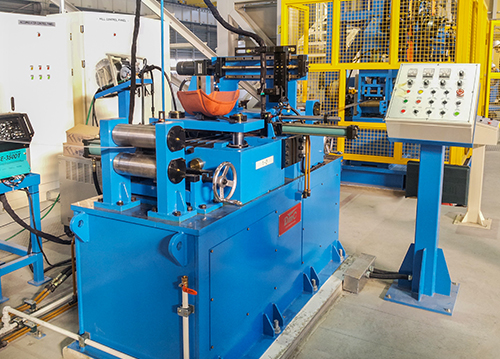

  • Auto Shear & End Welder Machine

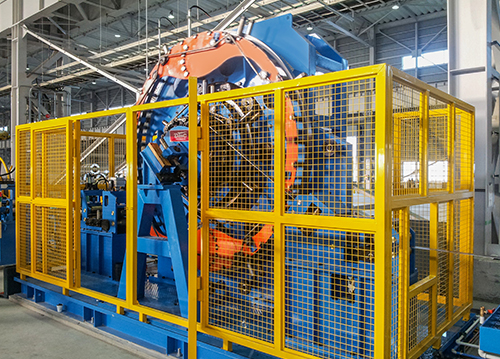

  • Rotary Accumulator (Vertical Type)

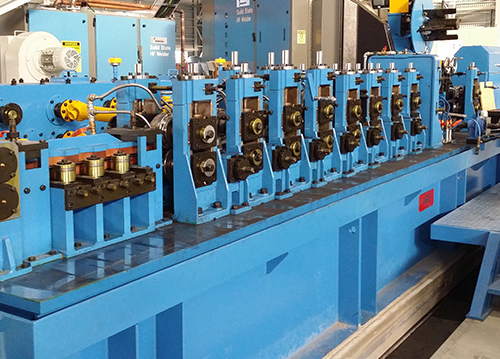

  • Forming Roll Stands

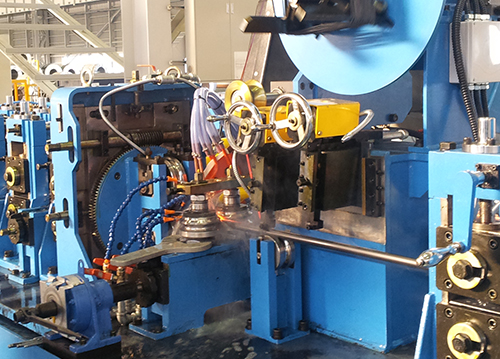

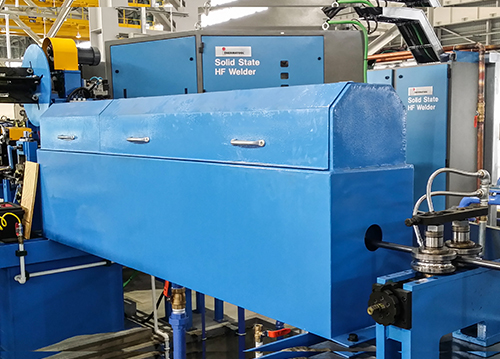

  • High Frequency Welding
  • Cooling Bath

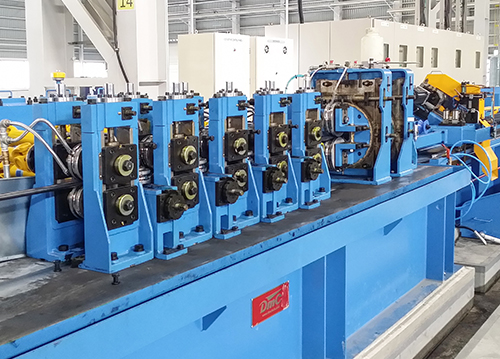

  • Sizing Roll Stands

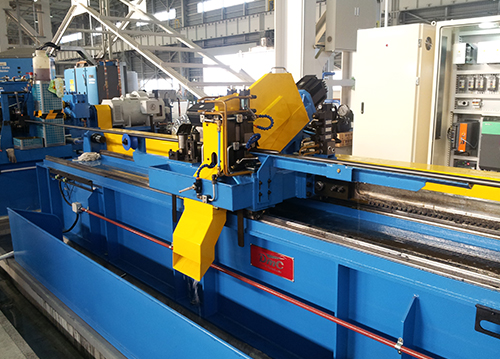

  • Cold Saw Cut-off Machine
  • End Facing & Chamfering Machine
  • Air Blowing System

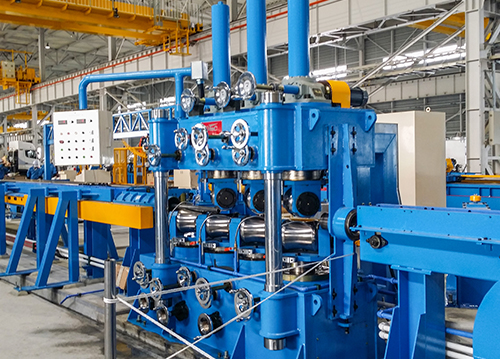

  • Straightening Machine
  • Semi-auto Packing System

Standard Technical Specification

ERW Tube Mill Line (Max. Ø25.4 ~ Ø60.5mm)

Specification
Models Tube Outer Diameter (mm) Wall Thickness (mm)
DMC-TM10A 10.0 ~ 25.4 0.6 ~ 2.3
DMC-TM11A 10.0 ~ 31.8 0.6 ~ 2.6
DMC-TM11B 12.7 ~ 38.1 0.8 ~ 2.6
DMC-TM12A 21.7 ~ 60.5 0.8 ~ 2.6
DMC-TM12B 21.7 ~ 60.5 1.0 ~ 3.2
DMC-TM12C 21.7 ~ 60.5 1.2 ~ 4.5
