ERW Tube Mill Line (O.D. Max. 219.1mm ~ 355.6mm)



  • Turnstile Coil Rack

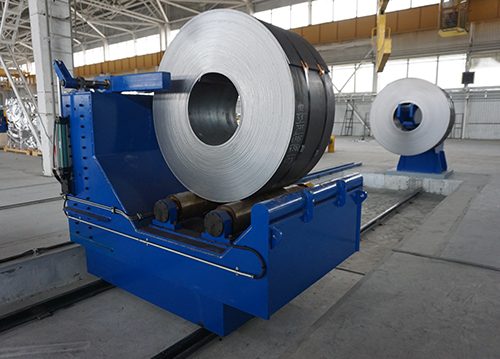

    Coil Car

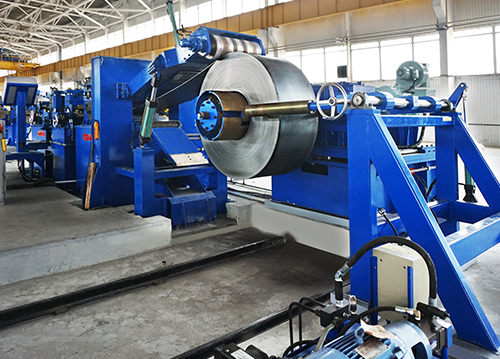

  • Uncoiler (Single Drum and Center Adjusting)
    Coil Opener and Peeler

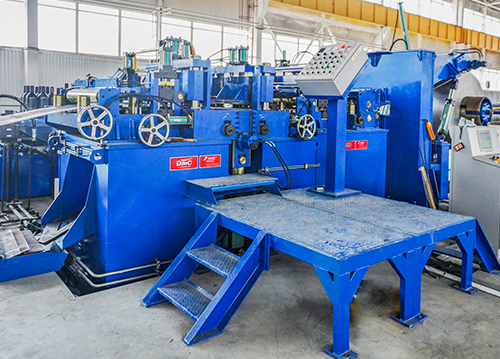

  • Shear and End Welder Machine

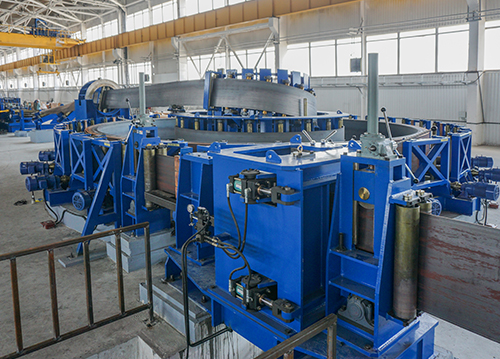

  • Spiral Accumulator (Horizontal Type)

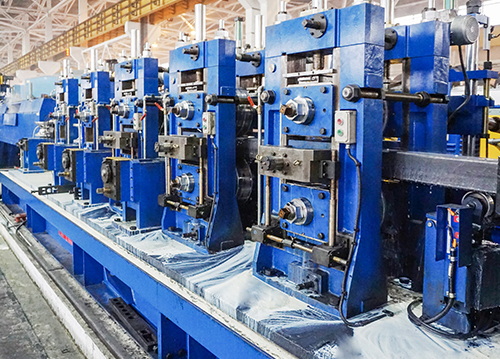

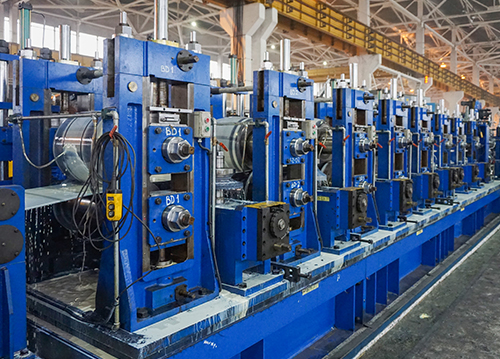

  • Forming Roll Stands
    Quick Change System (Quick Coupler Type)

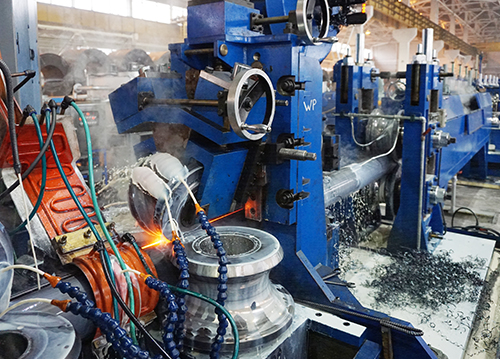

  • High Frequency Welding

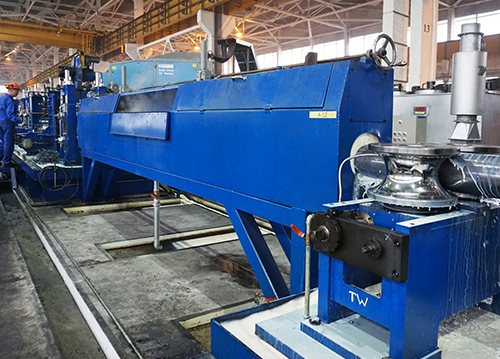

  • Cooling Bath

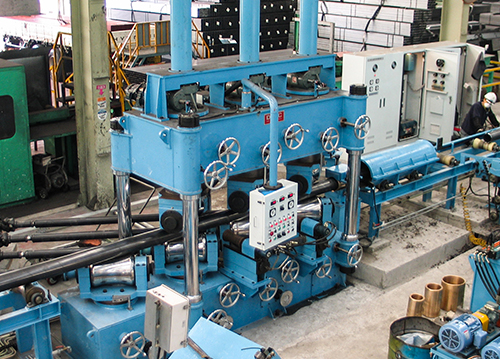

  • Sizing Roll Stands
    Quick Change System (Quick Coupler Type)

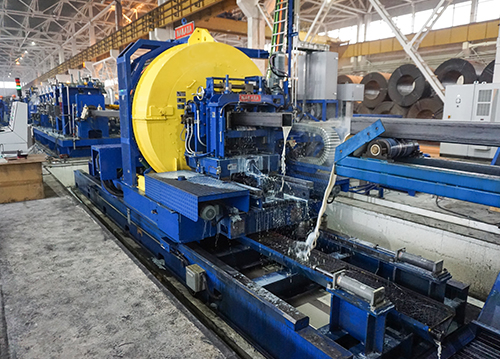

  • Milling Cut-off Machine (2-Blade Type)
  • Straightening Machine
  • End Facing and Chamfering Machine
  • Automatic Packing System (Magnet Type)

Standard Technical Specification

Specification
Models Nominal Size Tube Outer Diameter Wall Thickness
Round Square
inch mm mm mm
DMC-TM41A
DMC-TM41B
8
9
76.3 ~ 219.1
76.3 ~ 254.0
60x60 ~ 180x180
60x60 ~ 200x200
2.3 ~ 10.0
2.3 ~ 10.0
DMC-TM42A
DMC-TM42B
10
10
89.1 ~ 273.1
89.1 ~ 273.1
70x70 ~ 220x220
70x70 ~ 220x220
2.3 ~ 10.0
3.2 ~ 12.7
DMC-TM43A 12 101.6 ~ 323.9 80x80 ~ 250x250 3.2 ~ 12.7
DMC-TM44A 14 114.3 ~ 355.6 90x90 ~ 300x300 3.2 ~ 12.7
